• Wheels, 4-18" x 8" (45.7 cm x 20.3 cm) chrome-clad aluminum (spare wheel will not cosmetically match the other 4 wheels) (Upgradeable to (N87) 4 - 18" x 8" (45.7 cm x 20.3 cm) aluminum wheels or (S83) 4 - 20" x 8.5" (50.8 cm x 21.6 cm) chrome-clad aluminum wheels. Included with (PDV) Chrome Essentials Package. Not available with (Z71) Off-Road Suspension Package, (WEA) Z71 Enhanced Package or (NHT) Max Trailering Pack.)
• Tires, P265/65R18 all-season, blackwall includes all-season 17" spare (Upgradeable to (QMH) P265/65R18 all-season, White outlined-letter tires. Not available with (Z71) Off-Road suspension package or (WEA) Z71 Enhanced Package.)
• Wheel, 17" (43.2 cm) steel spare (spare wheel will not cosmetically match the other 4 wheels)
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Deleted when SEO (5Z4) spare wheel and carrier delete is ordered.)
• Tire carrier, outside spare, winch-type mounted under frame at rear
• Bumper, front body-colored (Includes body-color bumper end caps.)
• Bumper, rear chrome, step-style with pad
• Air dam, Black
• Moldings, bodyside, body-colored (Moldings are deleted if any SEO paint is ordered.)
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Fog lamps, front, halogen
• Lamps, dual cargo area lamps
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators (Mirrors are body-colored and include curb-tilt feature. Upgradeable to (DPN) outside vertical camper mirrors.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass) (With Regular Cab models, includes rear window. With Extended Cab models, includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger, includes light-tinted rear window.)
• Wipers, front intermittent wet-arm with pulse washers
• Door handles, color-keyed
• Pickup box, Fleetside

• Audio system, AM/FM stereo with CD player and MP3 playback seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), automatic volume, TheftLock, auxiliary input jack, USB port and 36 crossband presets
• Audio system feature, Bose premium speaker system with sub-woofer in center console
• Audio system feature, USB port
• Steering wheel controls, mounted audio controls
• XM Radio is standard on more than 50 2010 GM models, including three trial months of service. XM turns your world on with commercial-free music channels for virtually every music genre, all in amazing digital quality sound. Turn on your favorite sports, the biggest names in News, Talk and Comedy, family programming, exclusive concerts and original music series, wherever you go from coast to coast. Everything worth listening to is now on XM (XM service available only in the 48 contiguous United States and the District of Columbia. XM Radio subscription required and sold separately after trial period. Fees, taxes, and a one-time re-activation fee, may apply. Subscriptions governed by XM Customer Agreement available at xmradio.com. All fees and programming subject to change. Family programming Packages are available. Not available with (UUL) AM/FM stereo with MP3 compatible CD player and navigation, (UUK) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UE0) OnStar, delete.)
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system

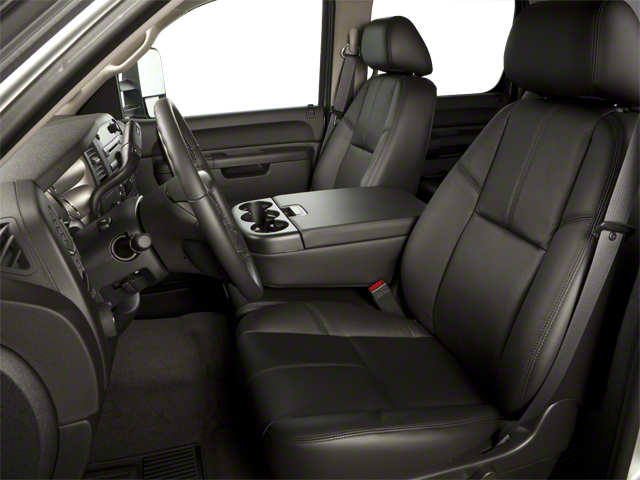

• Seats, front bucket includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console and storage pockets
• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
• Seat trim, Leather-appointed
• Seat adjuster, driver 10-way power
• Seat adjuster, front passenger 10-way power
• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)

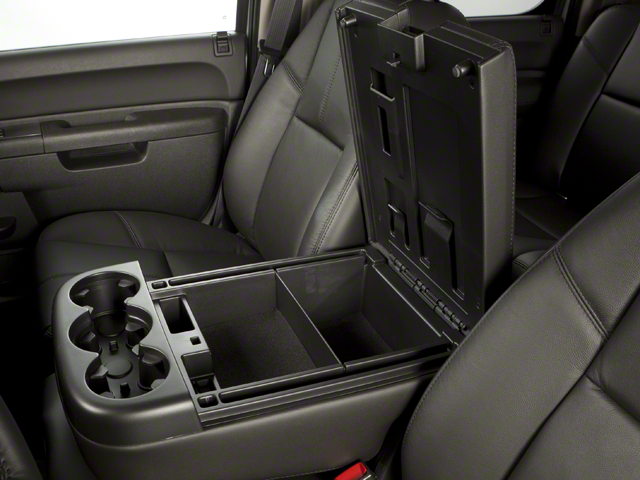

• Console, floor with storage compartment, 2 auxiliary power outlets and dual cup holders
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)
• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

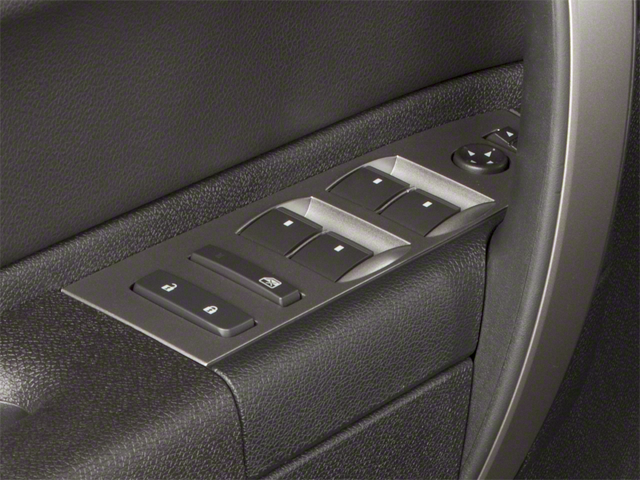

• Windows, power with driver Express-Down (Includes front passenger Express-down.)
• Door locks, power includes Remote Keyless Entry
• Remote vehicle starter system includes Remote Keyless Entry (Remote Keyless Entry does not lock/unlock tailgate when (PDF) LTZ Package is ordered.)
• Cruise control, electronic with set and resume speed, located on steering wheel
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models.)
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab Models.)
• Coat hooks, rear driver and passenger side
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control
• Daytime Running Lamps, with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, front outboard seating positions with rollover sensor (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance, Remote Ignition Block, Remote Door Unlock (requires power locks), Roadside Assistance, Remote Horn and Lights, Hands Free Calling, OnStar Vehicle Diagnostics, and Low Mileage Discount (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Vehicle Diagnostics capabilities vary by model. Remote door unlock success varies with conditions. Ability to locate stolen vehicles varies with conditions. Subscription Service Agreement required. Call 1-888-4ONSTAR (1-888-466-7827) or visit onstar.com for OnStar's Terms and Conditions, Privacy Policy and details and system limitations. Not available with a ship-to of Puerto Rico or the Virgin Islands. For a list of vehicles with Automatic Crash Notification visit onstar.com. Remote Door Unlock requires (AU3) Power door locks.)
• Tire Pressure Monitoring System (does not apply to spare tire)

CONVENIENCE PACKAGE

• includes (JF4) Adjustable power pedals and (UD7) Rear Parking Assist

LICENSE PLATE BRACKET, FRONT

• (will be forced on orders with ship-to states that require a front license plate)

SEATS, FRONT BUCKET

• includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control
• heated seat cushions and seatbacks
• 2-position driver memory
• adjustable outboard head restraints
• floor console and storage pockets (STD)

WHEELS, 4-18" X 8" (45.7 CM X 20.3 CM) ALUMINUM

• (spare wheel will not cosmetically match the other 4 wheels)

GVWR, 7000 LBS. (3175 KG)

• (STD)

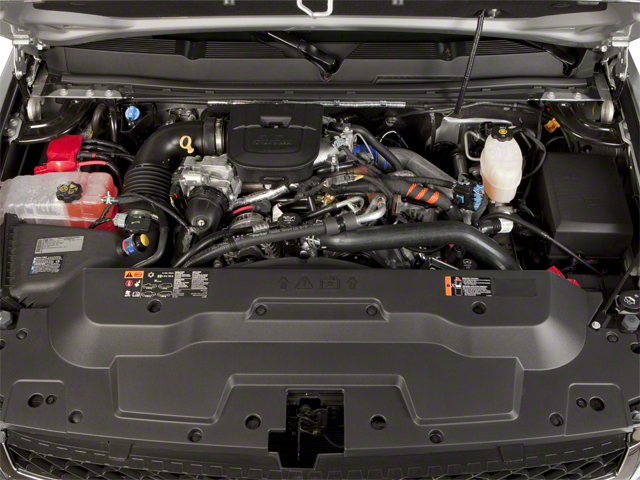

ENGINE, VORTEC 5.3L VARIABLE VALVE TIMING V8 SFI FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (with gas - 315 hp [234.8 kW] @ 5200 rpm
• 335 lb-ft of torque [452.2 N-m] @ 4000 rpm
• with E85 ethanol - 326 hp [243.1 kW] @ 5300 rpm
• 348 lb-ft of torque [469.8 N-m] @ 4400 rpm)
• aluminum block (STD)

REAR PARKING ASSIST, ULTRASONIC

• with audible warning

LTZ PLUS PACKAGE

• includes includes (UG1) Universal Home Remote
• (A60) locking tailgate
• (PPA) EZ-Lift tailgate and (S41) Rear wheelhouse liner
• LPO.

SUSPENSION PACKAGE, OFF-ROAD

• includes 1.81" (46 mm) shocks
• off-road jounce bumpers
• 36mm front stabilizer bar
• (NZZ) Skid Plate Package
• (V76) recovery hooks
• (K47) air cleaner and Z71 decals on rear quarters

Z71 APPEARANCE PACKAGE

• includes (N87) 4 - 18" x 8" (45.7 cm x 20.3 cm) aluminum wheels
• (QXN) P265/65R18 on-/off-road
• blackwall tires
• (T96) fog lamps
• body-colored outside mirrors and door handles
• unique "Z71 Plus" decals
• sill plates and instrument cluster
• (VLQ) chrome recovery hooks
• Rancho front and rear shocks
• unique front bumper lower fascia with smooth surface
• body-colored grille with unique chrome insert.

SKID PLATE PACKAGE

• frame-mounted shields
• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

LTZ PREFERRED EQUIPMENT GROUP

• includes standard equipment

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER AND MP3 PLAYBACK

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• automatic volume
• TheftLock
• auxiliary input jack
• USB port and 36 crossband presets (STD)

TIRES, P265/65R18 ON-/OFF-ROAD, WHITE OUTLINED-LETTER

• includes all-season 17" spare

TRANSMISSION, 6-SPEED AUTOMATIC

• (STD)

• CONVENIENCE PACKAGE includes (JF4) Adjustable power pedals and (UD7) Rear Parking Assist
• AIR CLEANER HIGH-CAPACITY
• MIRROR INSIDE REARVIEW WITH REAR CAMERA DISPLAY
• REAR AXLE 3.42 RATIO
• LICENSE PLATE BRACKET FRONT (will be forced on orders with ship-to states that require a front license plate)
• UNIVERSAL HOME REMOTE
• REARVIEW CAMERA SYSTEM
• ENGINE BLOCK HEATER
• SEATS FRONT BUCKET includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control heated seat cushions and seatbacks 2-position driver memory adjustable outboard head restraints floor console and storage pockets (STD)
• WHEELS 4-18 X 8 (45.7 CM X 20.3 CM) ALUMINUM (spare wheel will not cosmetically match the other 4 wheels)
• GVWR 7000 LBS. (3175 KG) (STD)
• ENGINE VORTEC 5.3L VARIABLE VALVE TIMING V8 SFI FLEXFUEL capable of running on unleaded or up to 85% ethanol (with gas - 315 hp [234.8 kW] @ 5200 rpm 335 lb-ft of torque [452.2 N-m] @ 4000 rpm with E85 ethanol - 326 hp [243.1 kW] @ 5300 rpm 348 lb-ft of torque [469.8 N-m] @ 4400 rpm) aluminum block (STD)
• TRAILER BRAKE CONTROLLER INTEGRATED
• EBONY LEATHER-APPOINTED SEAT TRIM
• REAR PARKING ASSIST ULTRASONIC with audible warning
• LTZ PLUS PACKAGE includes includes (UG1) Universal Home Remote (A60) locking tailgate (PPA) EZ-Lift tailgate and (S41) Rear wheelhouse liner LPO.
• TAILGATE EZ-LIFT
• SUSPENSION PACKAGE OFF-ROAD includes 1.81 (46 mm) shocks off-road jounce bumpers 36mm front stabilizer bar (NZZ) Skid Plate Package (V76) recovery hooks (K47) air cleaner and Z71 decals on rear quarters
• PEDALS POWER-ADJUSTABLE FOR ACCELERATOR AND BRAKE
• LPO REAR WHEELHOUSE LINER
• PAINT SOLID
• Z71 APPEARANCE PACKAGE includes (N87) 4 - 18 x 8 (45.7 cm x 20.3 cm) aluminum wheels (QXN) P265/65R18 on-/off-road blackwall tires (T96) fog lamps body-colored outside mirrors and door handles unique Z71 Plus decals sill plates and instrument cluster (VLQ) chrome recovery hooks Rancho front and rear shocks unique front bumper lower fascia with smooth surface body-colored grille with unique chrome insert.
• SKID PLATE PACKAGE frame-mounted shields includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• TAILGATE LOCKING
• LTZ PREFERRED EQUIPMENT GROUP includes standard equipment
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER AND MP3 PLAYBACK seek-and-scan digital clock auto-tone control Radio Data System (RDS) automatic volume TheftLock auxiliary input jack USB port and 36 crossband presets (STD)
• WINDOW POWER REAR SLIDING
• RECOVERY HOOKS CHROME
• SUMMIT WHITE
• TIRES P265/65R18 ON-/OFF-ROAD WHITE OUTLINED-LETTER includes all-season 17 spare
• TRANSMISSION 6-SPEED AUTOMATIC (STD)
• Tow Hitch
• Locking/Limited Slip Differential
• Four Wheel Drive
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Premium Sound System
• MP3 Capability
• Auxiliary Audio Input
• Steering Wheel Audio Controls
• Satellite Radio
• Telematics
• Requires Subscription
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Climate Control
• Multi-Zone A/C
• A/C
• Leather Seats
• Power Driver Seat
• Power Passenger Seat
• Rear Bench Seat
• Power Outlet
• Floor Mats
• Leather Steering Wheel
• Power Windows
• Keyless Entry
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Cruise Control
• Rear Defrost
• Power Outlet
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Adjustable Steering Wheel
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Front Side Air Bag
• Telematics
• Requires Subscription
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 14.9
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): 3163
• Curb Weight - Rear (lbs): 2182
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1425
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Maximum Trailering Capacity (lbs): 10400
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-stage multi-leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.42
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 46
• Stabilizer Bar Diameter - Front (in): 1.42
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.99 x 1.18
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.61 x 2.36
• Tires
• Front Tire Order Code: QXQ
• Front Tire Order Code: QMG
• Rear Tire Order Code: QXQ
• Rear Tire Order Code: QMG
• Spare Tire Order Code: - TBD -
• Spare Tire Order Code: - TBD -
• Front Tire Size: P265/65R18
• Rear Tire Size: P265/65R18
• Spare Tire Size: - TBD -
• Front Tire Capacity (lbs): 2244
• Rear Tire Capacity (lbs): 2244
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8
• Rear Wheel Size (in): 18 x 8
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.73
• Steering Ratio (:1), At Lock: 3
• Turning Diameter - Curb to Curb (ft): 47.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Driver Side
• Exterior Dimensions
• Wheelbase (in): 143.5
• Length, Overall w/o rear bumper (in): 229.9
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 73.7
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 47.2
• Front Bumper to Back of Cab (in): 148.9
• Cab to Axle (in): 32.0
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 32.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.0
• Ground Clearance, Rear (in): 12.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.3
• Cargo Box Width @ Top, Rear (in): 61.5
• Cargo Box Width @ Floor (in): 62.4
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 53.2
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.5
• Second Leg Room (in): 38.7
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 65.4
• Summary

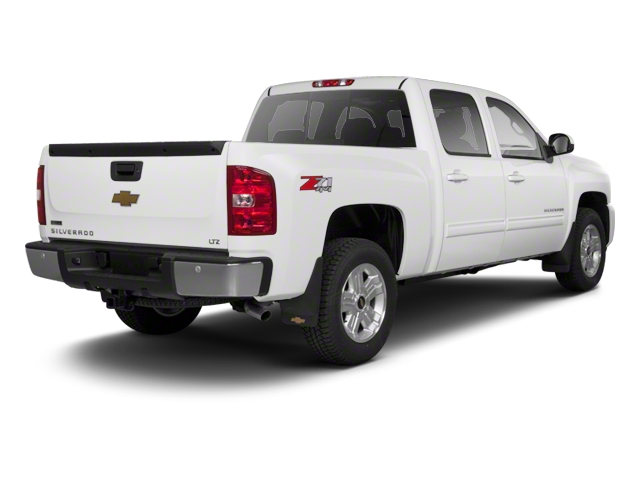

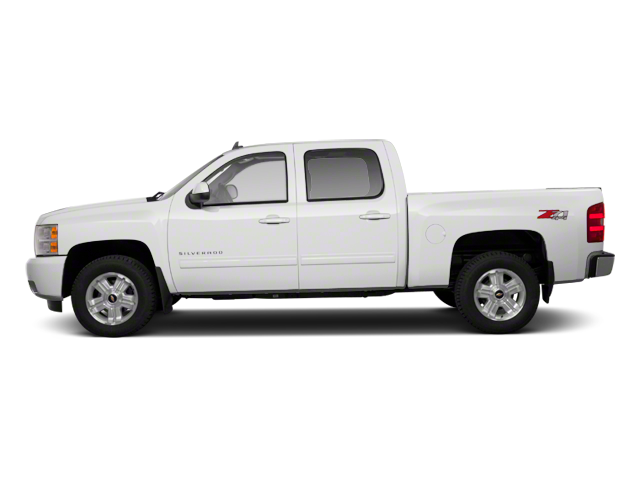

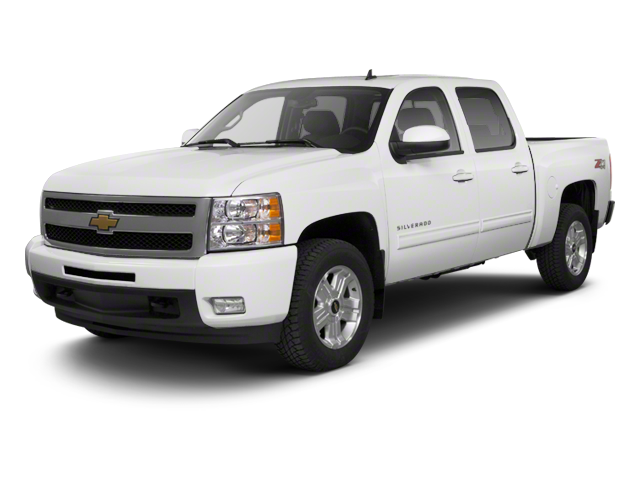

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Crew Cab 5.8' Wideside
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: 3
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.0
